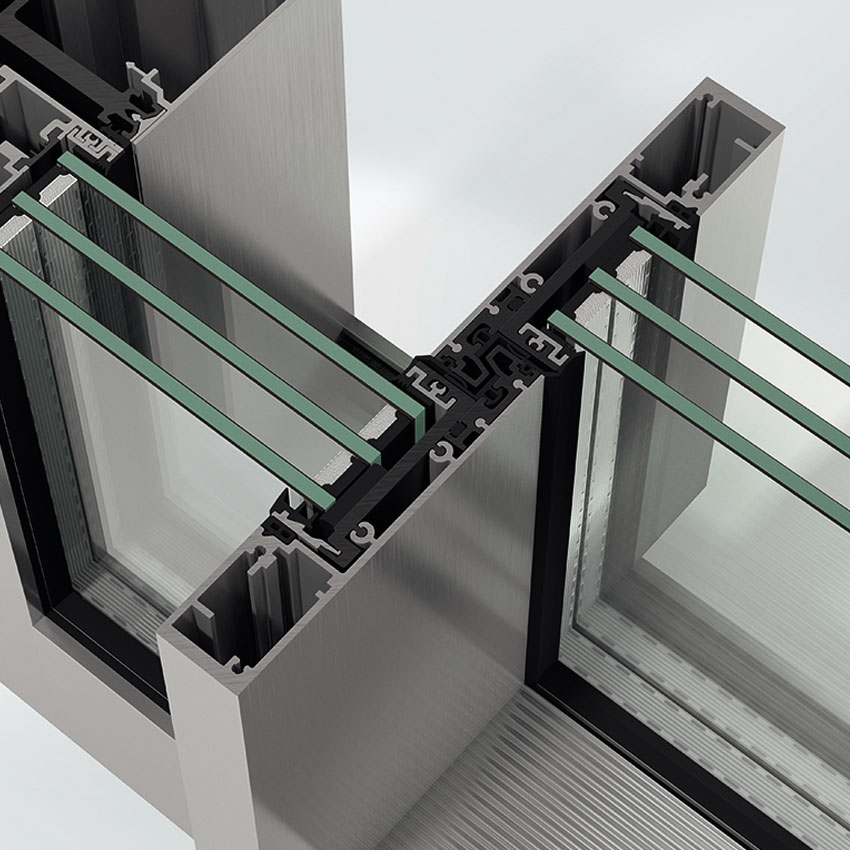

Schüco ASE 67 PD

Schüco ASE 67 PD

High insulation thermal break sliding door system Schüco ASE 67 PD Panorama Design with zero face width.

Architectural system, specially designed to provide comfort, energy-saving, top functionality and fine aesthetics.

Categories: , , , Tags: , , ,
Description

TECHNICAL CHARACTERISTICS

Dimensions:
Frame profile depth: Double guide rail 177 mm Triple guide rail 267 mm
Frame face width: Zero visible aluminium face width – 0 mm
Maximum glass thickness: from 36 mm to 49 mm
Sheet profile depth: 67 mm
Sheet face width: 32,2 mm at the hooks

DO YOU HAVE QUESTIONS?
ASK US ABOUT THE PRODUCT

We are always at your disposal, since we want to be able to answer any possible question you may have regarding the products and their application options.

Contact us!

More Information

Mechanism: SCHÜCO with maximum sash weight 400 kg

Profiles have straight form

Opening 90° corner option

Manufacturing capability of up to 3 meters high

Description: RAL 9016 STRUCTURA
Code: YA316F
Technology: Interpon D2525
Collection: Structura
Company: AkzoNobel
Description: GRIS 2500 SABLE
Code: YW358F
Technology: Interpon D2525
Collection: Futura 2014-2017
Company: AkzoNobel
Description: RAL 7016 STRUCTURA
Code: YL316F
Technology: Interpon D2525
Collection: Structura
Company: AkzoNobel
Description: GRAZALEMA 2525
Code: YW266F
Technology: Interpon D2525
Collection: Futura 2014-2017
Company: AkzoNobel
Description: BLUE 2600 SABLE
Code: YW361F
Technology: Interpon D2525
Collection: Futura 2014-2017
Company: AkzoNobel
Description: RAL 8014 STRUCTURA
Code: YM314F
Technology: Interpon D2525
Collection: Structura
Company: AkzoNobel

PDF Brochure AkzoNobel Colour Range

B 1215

B 1523 – Nussbaum

B 1920

B 1511

B 1816

B 2119 – Golden Oak

B 1519

B 1918
