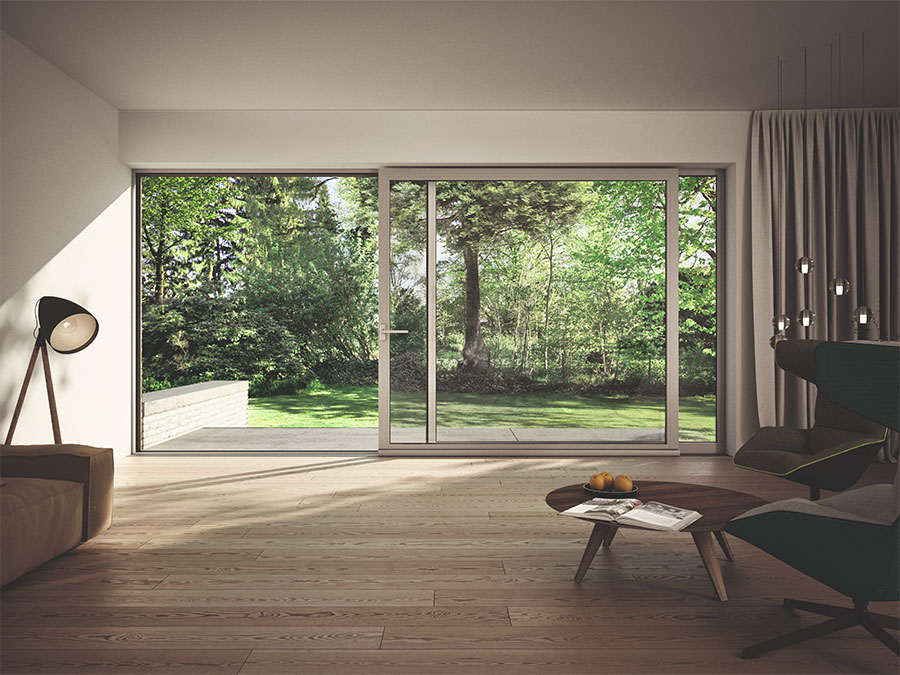

Schüco AWS 65 PASK2
Schüco AWS 65 PASK3
Schüco AWS 70 FD
Schüco AWS 65 PASK2
Schüco AWS 65 PASK3

Schüco AWS 65 PASK

High insulation thermal break tilt & slide system window system, with total face width of 117 mm.

Excellent practicality combining sliding opening and hung position; the list of its unique features is complemented by its excellent thermal insulation, sealing, soundproofing and burglar-resistance performance.

Categories: , , , Tags: , , ,
Description

TECHNICAL CHARACTERISTICS

Dimensions:
Frame profile depth: 65 mm
Frame face width: 69 mm
Maximum glass thickness: 4-45mm casement 11-55mm sheet mm
Sheet profile depth: 75 mm
Sheet face width: 78 mm

DO YOU HAVE QUESTIONS?
ASK US ABOUT THE PRODUCT

We are always at your disposal, since we want to be able to answer any possible question you may have regarding the products and their application options.

Contact us!

More Information

Mechanism: 150kg SCHÜCO opening-hanging/sliding mechanism

EPDM sealing gaskets

Profiles have straight form

Compatible with Schüco ADS 65 doors series

Charge groups in accordance with DIN EN 12207/12208/12210





Thermal Insulation: Uf  2.2 W/m2K in accordance with DIN EN ISO 10077-2

Soundproofing up to Rw=47dB in accordance with DIN EN ISO 140-3

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208 Class: 9A

Wind pressure resistance in accordance with DIN EN 12210: Class: C5 / B5

Mechanical strength in accordance with DIN EN 13115 Class: 4

Functionality over time in accordance with DIN EN 12400 Class: 3



Description: RAL 9016 STRUCTURA
Code: YA316F
Technology: Interpon D2525
Collection: Structura
Company: AkzoNobel
Description: GRIS 2500 SABLE
Code: YW358F
Technology: Interpon D2525
Collection: Futura 2014-2017
Company: AkzoNobel
Description: RAL 7016 STRUCTURA
Code: YL316F
Technology: Interpon D2525
Collection: Structura
Company: AkzoNobel
Description: GRAZALEMA 2525
Code: YW266F
Technology: Interpon D2525
Collection: Futura 2014-2017
Company: AkzoNobel
Description: BLUE 2600 SABLE
Code: YW361F
Technology: Interpon D2525
Collection: Futura 2014-2017
Company: AkzoNobel
Description: RAL 8014 STRUCTURA
Code: YM314F
Technology: Interpon D2525
Collection: Structura
Company: AkzoNobel

PDF Brochure AkzoNobel Colour Range

B 1215

B 1523 – Nussbaum

B 1920

B 1511

B 1816

B 2119 – Golden Oak

B 1519

B 1918
