ESSENCE W67 HI² CE

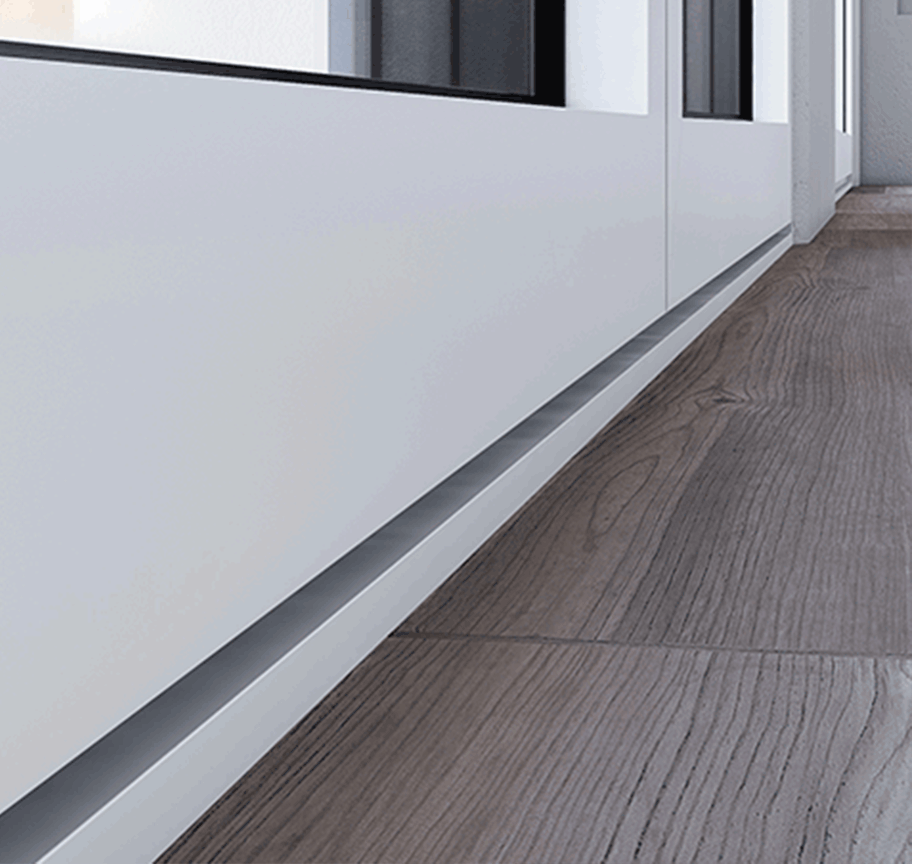

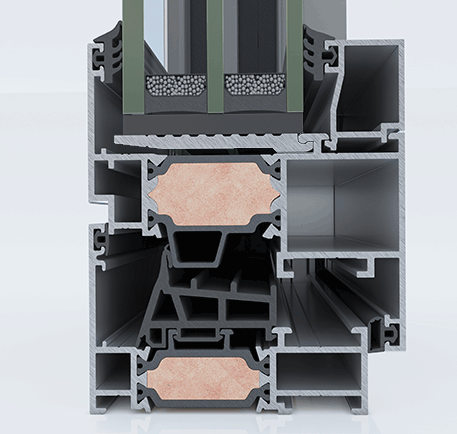

Modern architectural trends want imposing constructions, with large openings. The specially designed T with an internal face reinforcement of only 10mm allows you to create durable constructions according to the latest architectural trends. The application of a specially designed frame ensures the perfectly flush appearance on the internal face of the frame. The hidden tilt-and-open mechanism blends perfectly and highlights it.

Categories: , , , Tags: , , ,
Description

TECHNICAL CHARACTERISTICS

Dimensions:
System Depth: 67 mm
Minimum Face Height (Frame-Sash): 89 mm
Minimum Face Width (Middle Mullion): 154 mm
Maximum Sash Height: 2.800 mm
Maximum Sash Width: 1.600 mm
Maximum Glass thickness: 60 mm
Maximum Sash Weight: 200 kg

DO YOU HAVE QUESTIONS?
ASK US ABOUT THE PRODUCT

We are always at your disposal, since we want to be able to answer any possible question you may have regarding the products and their application options.

Contact us!



More Information

Different climatic conditions require different management and solutions specially designed to deal with them.

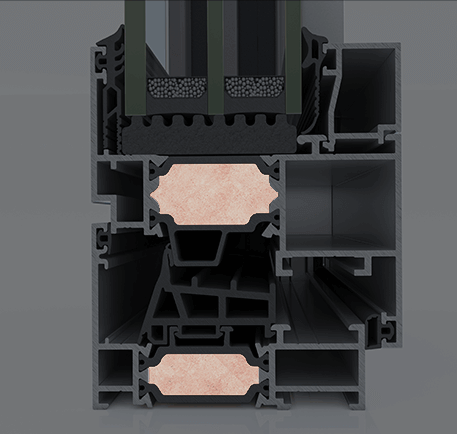

This product is available in three levels of energy efficiency, so that you can answer every requirement.

Uf ≥ 1.8 W/m²K

Uf ≥ 1.8 W/m²K

Uf ≥ 1.2 W/m²K

Uf ≥ 1.1 W/m²K

Thermal insulation: Uf 1.2 W/m²K for the retractable system (level 2)

Sound insulation : 40dB

Burglar resistance up to RC2 in accordance with DIN V ENV 1627

Air permeability in accordance with DIN EN 12207 Class: 4

Water permeability in accordance with DIN EN 12208:  E1050

Wind pressure resistance in accordance with DIN EN 12210 Class: C5/B5

Mechanical strength in accordance with DIN EN 13115 Class: Class 2

RAL 9016 STRUCTURA
Description: RAL 9016 STRUCTURA
Code: YA316F
Technology: Interpon D2525
Collection: Structura
Company: AkzoNobel
Description: GRIS 2500 SABLE
Code: YW358F
Technology: Interpon D2525
Collection: Futura 2014-2017
Company: AkzoNobel
Description: RAL 7016 STRUCTURA
Code: YL316F
Technology: Interpon D2525
Collection: Structura
Company: AkzoNobel
Description: GRAZALEMA 2525
Code: YW266F
Technology: Interpon D2525
Collection: Futura 2014-2017
Company: AkzoNobel
Description: BLUE 2600 SABLE
Code: YW361F
Technology: Interpon D2525
Collection: Futura 2014-2017
Company: AkzoNobel
Description: RAL 8014 STRUCTURA
Code: YM314F
Technology: Interpon D2525
Collection: Structura
Company: AkzoNobel



PDF Brochure AkzoNobel Colour Range

B 1215

B 1523 – Nussbaum

B 1920

B 1511

B 1816

B 2119 – Golden Oak

B 1519

B 1918
